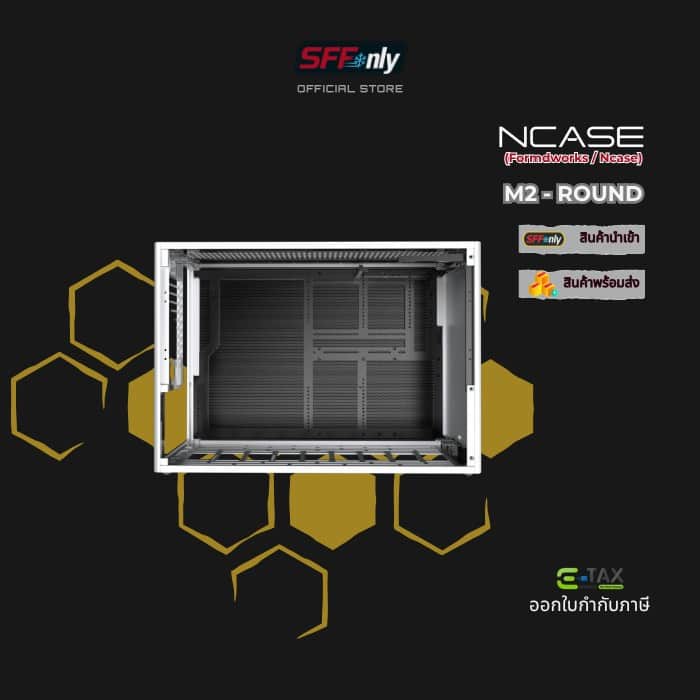

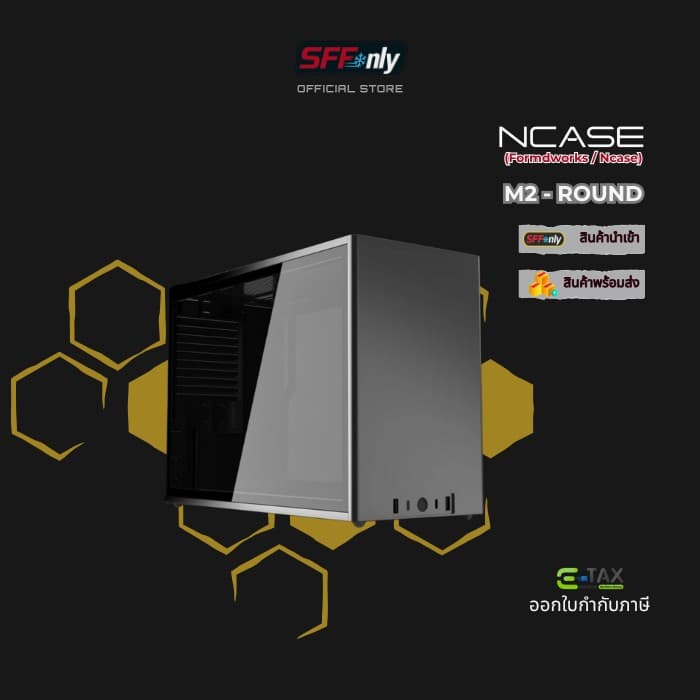

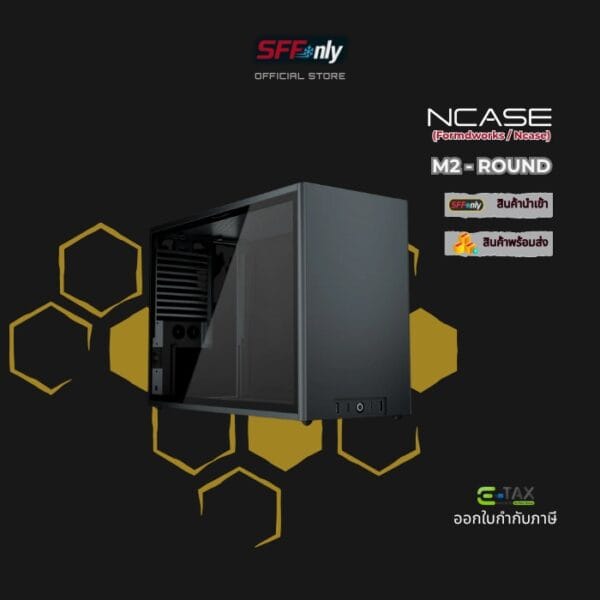

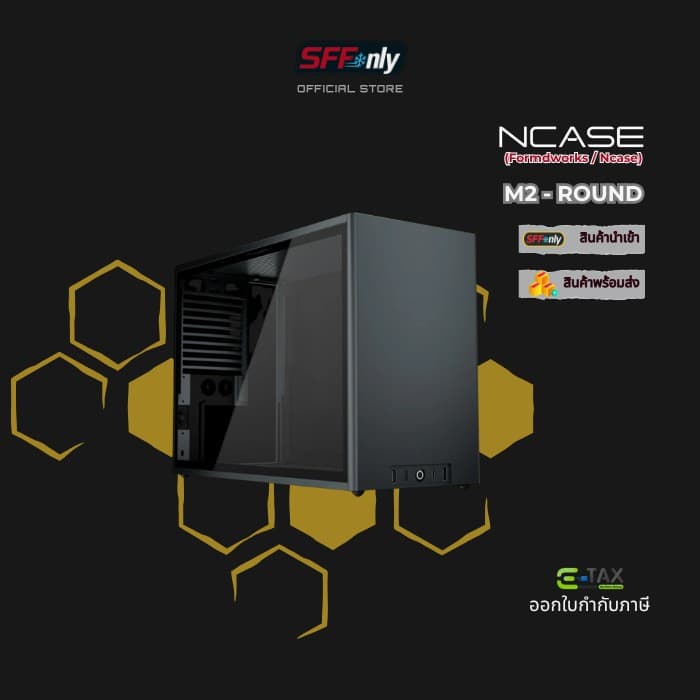

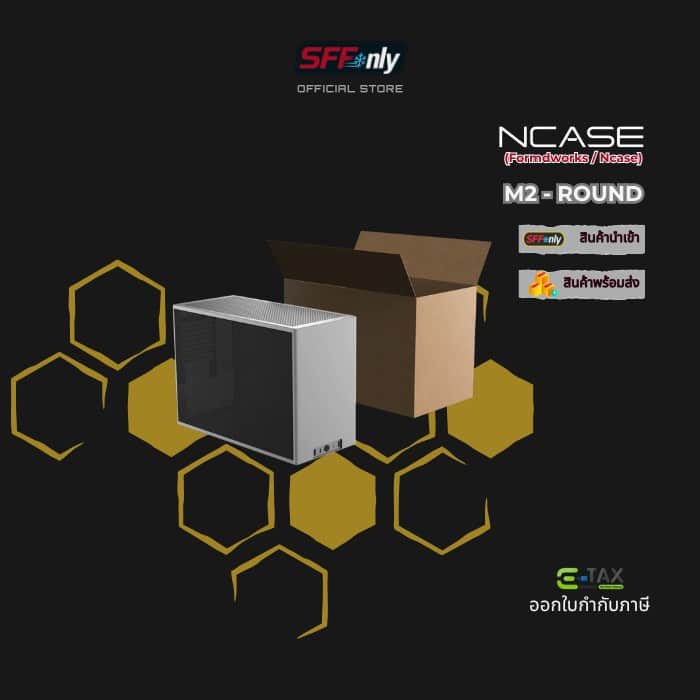

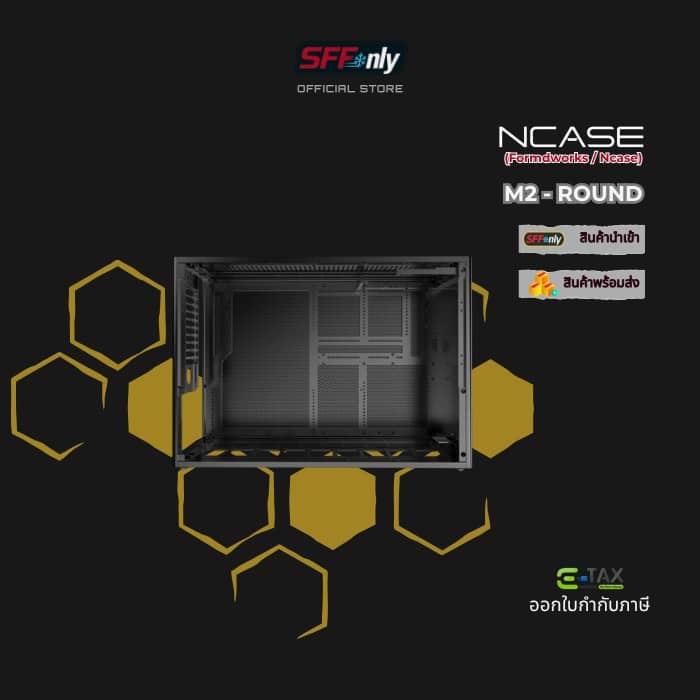

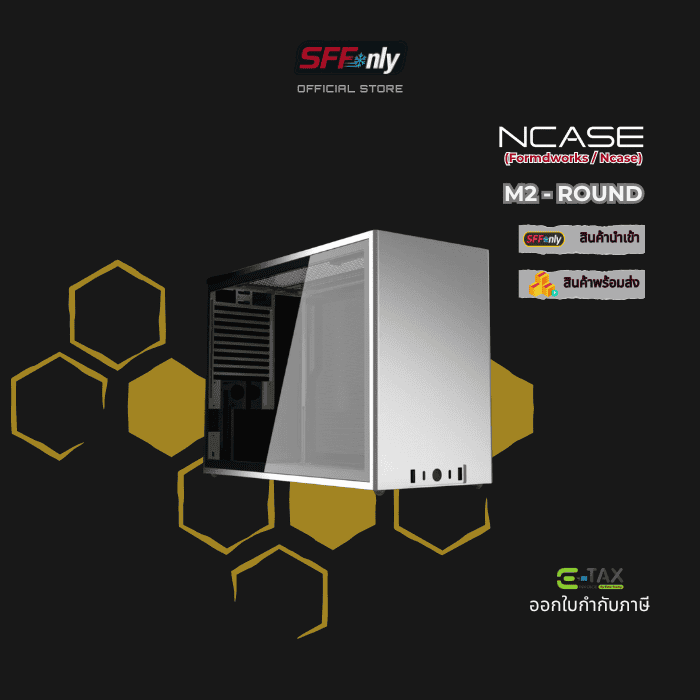

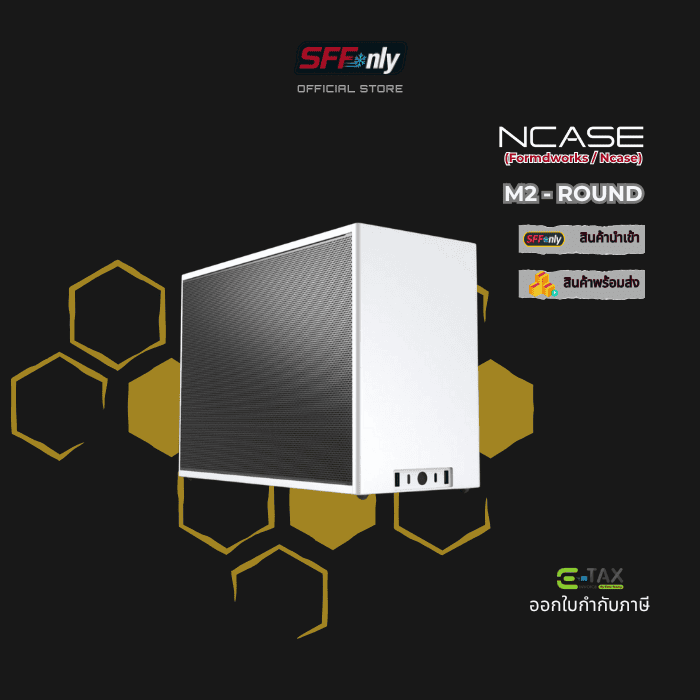

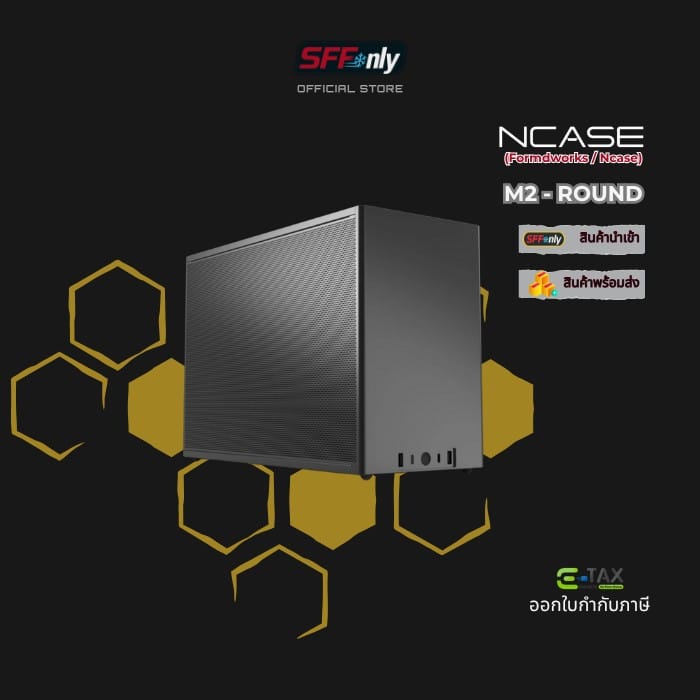

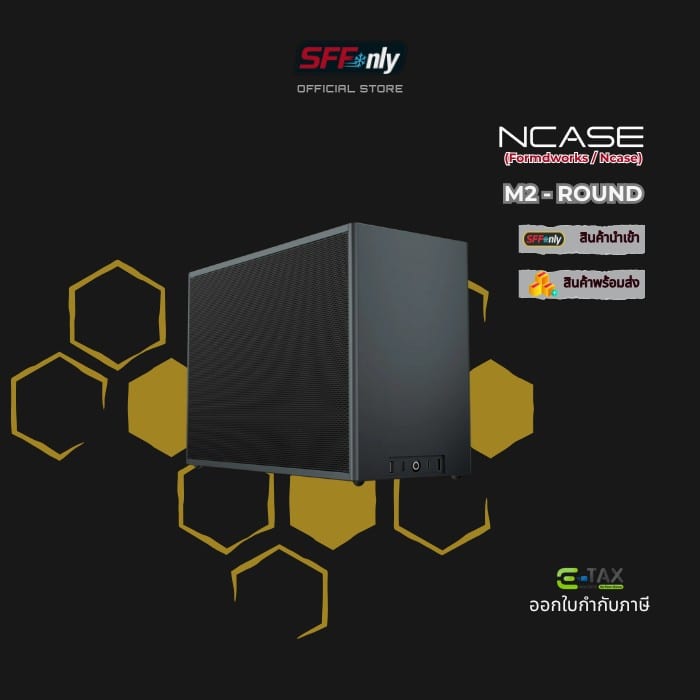

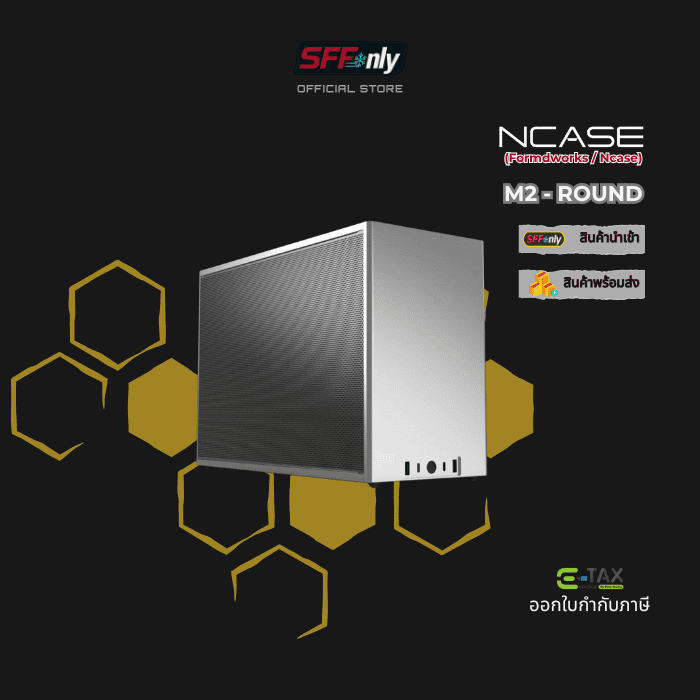

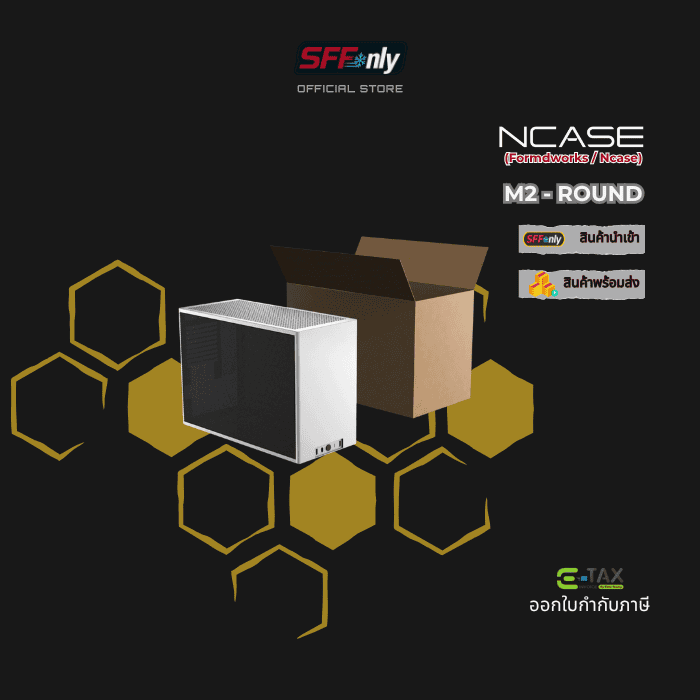

M2 – Round

Ncase
Availability:

In stock

เคส ITX สุดพรีเมียมรุ่นต่อยอดจาก NCASE M1 รองรับ 3 โหมดการติดตั้ง (Classic, Flip, Vertical GPU) พร้อมรองรับหม้อน้ำหลายขนาดและชุดน้ำคัสตอม เหมาะสำหรับสายประกอบเครื่องเล็กแรงสูง

Price range: ฿8,500.00 through ฿10,500.00

Brand

Variants

M2-Round, M2-Angle, M2-Split, M2-Grater
Panel

Aluminuim Mesh, Aluminuim Mesh + Glass Window (1 side)
Materials

Chassis: 2.5-18mm Aluminum, CNC Machined and Anodized
Fan Bracket: 1.0mm Steel, Powder-Coated

M2-Angle, M2 Split, M2-Grater Side Panels: 1.5mm Aluminum, Anodized (see 2025-04-08 Blog Post. Prior Side Panels are Powder-Coated.)

M2-Round Side Panels: 1.5mm Aluminum, Powder-Coated
Dimension (cm)

16.6 x 25.8 x 36.6 (without feet/protrusions/screws)
16.6 x 26.2 x 37.2 (including feet/protrusions/screws)
Volume (L)

15.67 (without feet/protrusions/screws)
16.18 (including feet/protrusions/screws)
Weight (KG)

3-5 based on variant kit/bundle
PCIe Riser Support

Classic Config: Not Applicable
Flipped Config: Not Applicable
VGPU Config: PCIe X16 4.0 and 5.0

*ขึ้นอยู่กับลักษณะการวาง
Motherboard Compatibility

Mini-ITX, Deep-ITX, Mini-DTX, Micro-ATX
CPU Cooler Compatibility

Classic Config: 144.8mm
Flipped Config: 144.8mm
VGPU Config: 50mm for 4-Slot graphics cards, 70mm for 3-Slot graphics cards
Graphics Card Compatibility

Classic Config: 359mm long, 148mm tall, 4-Slots
Flipped Config: 359mm long, 148mm tall, 4-Slots
VGPU Config: 359mm long, 175mm tall, 4-Slots
Power Supply Compatibility

Classic Config: SFX, SFX-L, ATX (140mm)
Flipped Config: same as Classic Config
VGPU Config: SFX, SFX-L

Note: ATX Power Supplies up to 160mm deep can fit with some Motherboards and 3-Slot Graphics cards. Please see M2 Builds for more information.
Liquid Cooling Compatibility

1 x 120 Radiator / AIO
1 x 140 Radiator / AIO
1 x 240 Radiator / AIO
1 x 280 Radiator / AIO based on components

Note: The following Radiator/AIO combinations may be compatible with specific components. Please see M2 Builds for more information.
– 2 x 240 Radiator / AIO
– 2 x 280 Radiator / AIO
– 3 x 240 Radiator / AIO
– 3 x 280 Radiator / AIO

* ขึ้นอยู่กับลักษณะ Build
Drive Compatibility

3 x 2.5" drives based on components
1 x 3.5" drives based on components

Note: Up to 12 x 2.5" drives or 8 x 3.5" drives can be accommodated with specific components. Please see M2 Builds for more information.
Fan Compatibility

2 x 120mm + 1 x 92mm based on components
2 x 140mm + 1 x 92mm based on components

Note: Up to 9 case fans (8 x 120mm + 1 x 92mm, or 6 x 140mm + 2 x 120mm + 1 x 92mm) can be installed simultaneously with specific components. Please see M2 Builds for more information.
Front I/O

Power Button
2x USB-A
1x USB-C

Note: The M2-Grater variant does NOT include Front USB IO.
